Save 13%

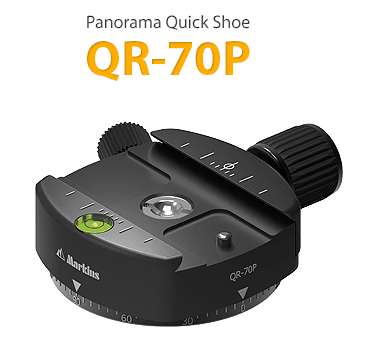

Markins QR-70P

List price: 33,480
29,210
You save: 4,270 円 (13%)
Price in points: 29210 points
QR70P

Markins QR-70P is Compatible with any Arca-Swiss type quick shoe(clamp). It is designed for precision panorama photography. Panning action is silky smooth. Employing our new Quick-Turn knob, it is extremely fast and efficient to open and close the clamp while offering excellent compatibility with most Arca Swiss type plate in the market. The Quick-Turn knob is 3 times faster than the traditional style.

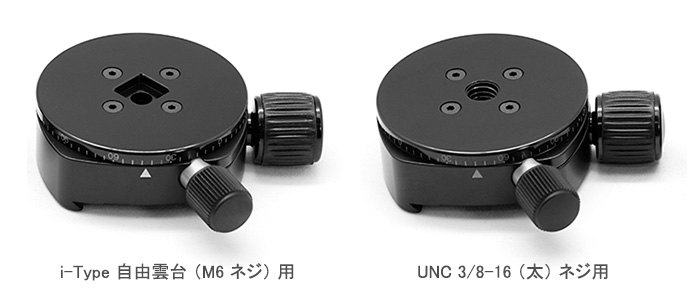

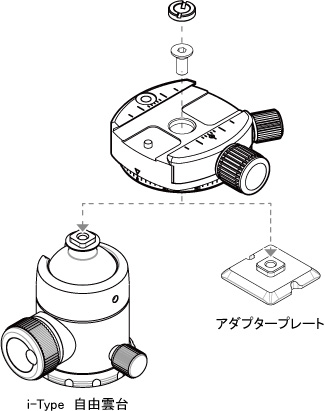

It can be mounted directly on our new i-Type Q-Balls replacing the existing clamp with M6 screw. Or, it can be mounted on top of the existing Arca Swiss type clamp using the PE-1 Adapter that comes together as kit.

  • Innovative design greatly reduces size and weight. (Patent Pending)
  • Compatible with any Arca-Swiss type camera plates
  • The Quick-Turn knob opens or closed by one turn. (Patented)
  • DDL Mechanism-Enhanced locking by double wedge lock (Patented)

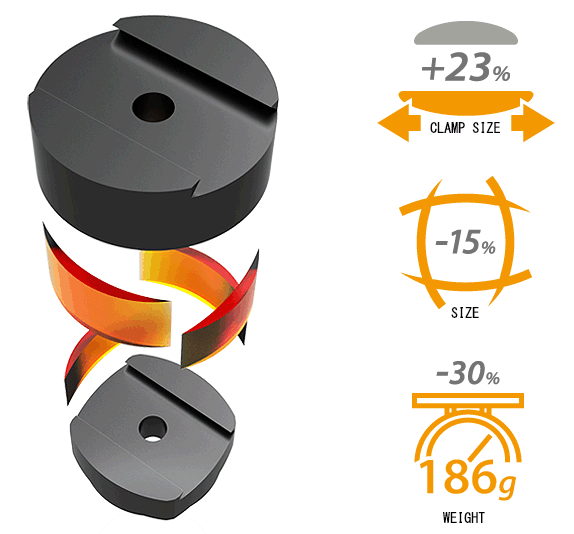

Innovative design
QR-70P is a totally new panorama quick shoe in the market. Main body is cut to shape beautiful body lines. It keeps larger jaw clamping area, greatly reduces size and weight.


Mininum size, Maximum performance
QR-70P reduces size and weight. but increases locking power and usefulness.
"Lowest profile in its class, 24mm"
Height is minimized to keep it free from vibration.

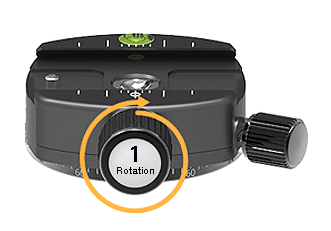

Quick turn knob
It also equipped with patented quick turn knob. It only takes a single turn to open or close the quickshoe jaw. You will love this fast open and close performance when your need to change the setup quickly, especially in cold weather or in need of quick response.

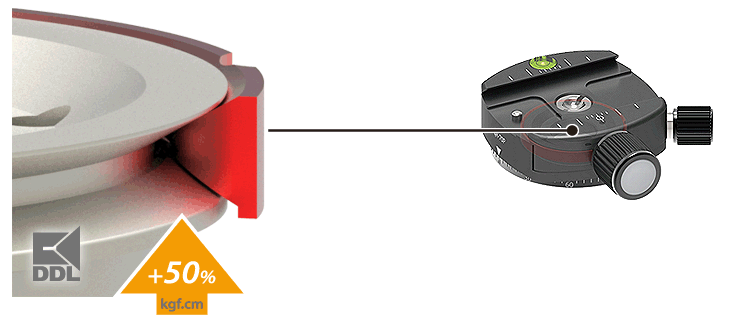

Powerful panning lock - Double Disk Lock

Small and light weight design is possible due to this powerful locking mechanism. QR-70P is equipped with a newly optimized DDL (double disc lock) mechanism. It is a device with dual wedge locking ring and disk of round shapes. It needs less torque to lock the panning. Overall, it is improved by 50%. Axis of rotation also stays the same regardless of locking. Position of locking knob is changed for easier control under a long nodal slide. It is more comfortable to operate and will provide you with sharper images.

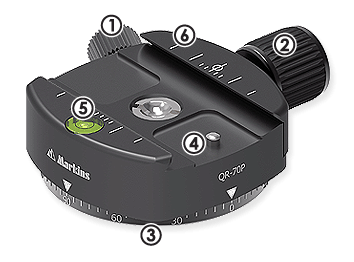

Names of the Components
  1. Panorama locking knob
  2. Plate locking knob
  3. Panorama base (5' index)
  4. Plate stoper
  5. Bubble level
  6. Quick shoe index





Code
QR70P
Release Style
Quick Turn Knob Style
Base Diameter
2.44 in (62mm)
Jaw Width
2.20 in (56mm)
Width (Close / Open)
3.31 in (84mm) / 3.50 in (89mm)
Height
0.94 in (24mm)
1.14 in (29mm) w/ Adaptor Plate
Weight
6.56 oz (186g)
7.23 oz (205g) w/ Adaptor Plate
